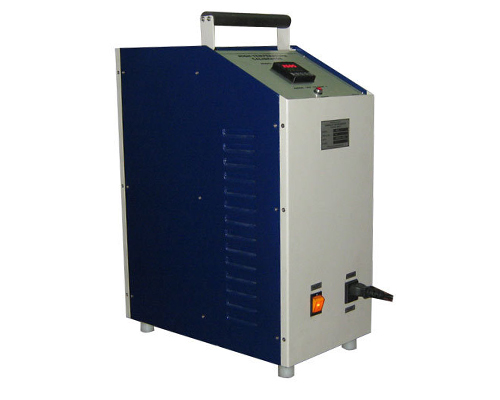

High Temperature Calibrator (ATC-1200)
FEATURES:
- Ideal for both Field & Lab use.
- Cost Effective Solution
- Fast Heating & High Stability.
- Wide working range.
- Heating chamber made in High Alumina Tube
- Thermal Insulation in Ceramic Fiber.
- Interchangeable Well / Insert with Single & Multihole
- Auto Tune PID Temperature
- Switch Test Facility
- 24 VDC volt supply is available to energies transmitter & a Continuity tester built in for thermal switches.
| MODEL | ATC 1200 |
| Range | 300°C to 1200°C |
| Resolution (Set & Display) | 0.1°C – upto 999°C
1°C – from 1000°C |
| Stability | ± 1°C |
| Display Accuracy | ± 0.25% F.S |
| Stabilization Time | 20 Min |
| Heating Time | 20°C/Min |
| Cooling Time(up to 300°C) | 60 Minutes |
| Controller | PID |
| Engineering Units | °C & °F |
| Transmitter Supply | 24 VDC / 0.5A |
| Switch Testing | Provided / 24 VDC Open |
| Dry Block Material | Inconel |
| Well Depth (Insert) | 170 mm from Top |
| Well Holes | 6.2, 6.2, 8.2 , 10.2 & 12.2 mm |
| Power Supply (***) (VAC) | 220±10%VAC- 50HZ |
| Power Consumption | 1800 Watts |
| Dimension (LXWXH) mm | 205 X 364 X 455 mm |
| Weight (KG) | 12.2 KG |
| Accessories | Well Remover, Fuse, Power Cord, Switch Test Probe, Instruction Manual, NABL Calibration Certificate |
STANDARD SUPPLY INCLUDES:
- Basic unit
- Power Cable, Spare Fuse, & Standard Probes
- Traceable Calibration Certificate.
- Insert / Well Remover.
- Operating Manual
OPTIONAL
- Additional Insert / Well (Max Hole up to 18mm)
- RS232 / 485 Communication with software
- Power Supply optional 110z5% VAC — 60HZ / 1200 Watts
- NABL Calibration certificate
- Reference / Master Temperature sensors.
