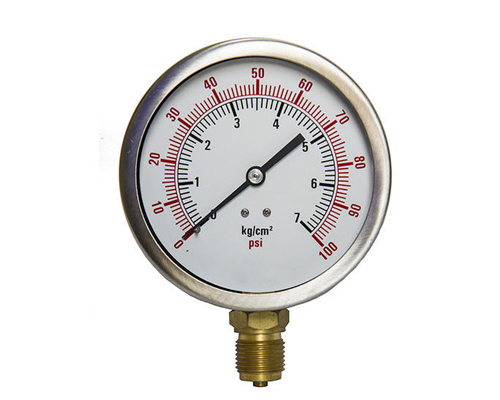

Pressure Gauge

Range                              : 0 to 600 kg/cm2

Accuracy                           : ± 0.25 %

Dial Size                           : 50 to 250 mm

Bourdon / Stem Material      : AISI 316 SS Bourdon Tube

Movement                        : AISI 304 SS

Thread Size                       : ½” BSP(M)

Mounting and Connections   : Direct and Bottom Entry

Casing / Bezel                    : SS 304, Bayonet Type

Over range production        : 130% FSD.

Front window                    : Toughened Glass/Acrylic sheet

End connections                 : Stainless Steel 304

Scale                                : Aluminum disc with bold black marking on white

Background

Pointer                             : Aluminum, Knife edge, Micro – zero Adjustable

Mounting                                            : Back Entry / Bottom Entry

Optional               : Glycerine filled / Electrical Contact
