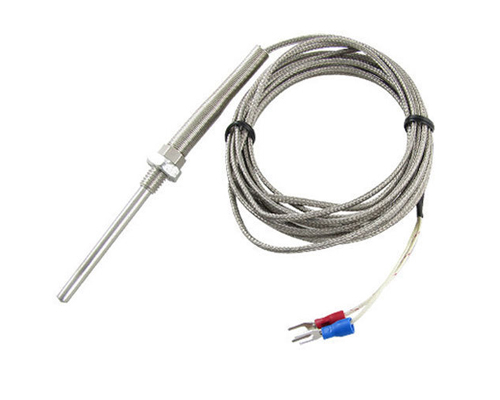

Special Thermocouple – Custom Designed

Type :           Platinum / Copper / Nickel – Simplex / Duplex

Standard :   DIN 43760 / IS 2848 / JIS / GOST / IEC 751

Accuracy :   Class A , B, z’ DIN, 1/3 DIN, 1/5 DIN

Resistance : Platinum – R 46/ 50/ 100/ 20 I / 500/ 1IXI0 D at 0°C | Copper – Cu 53 ohms / 10 D at 0°C. | Nickel – Ni 100/ 200 Cl at0°C.

Insulation :  MGO Filled, Ceramic beaded, Mineral Insulated

Sheath :     SS 304 / 316 / TEFLON / KYNAR etc.,

OD :      From 3mm Dia to 12mm Dia

Termination : Plug and Socket, Head Assembly, Lead wire with lugs and Special Construction

Extension :   PTFE / Fiberglass / SS braided Cable

PC :    Compression fitting, bayonet fitting, Screwed
