Thermocouple Cables

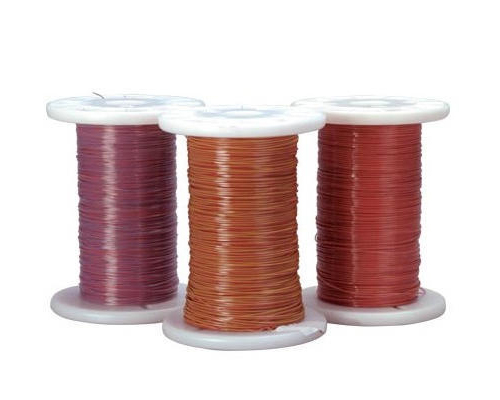

Original Thermocouple Cable
Size : 0.25 Sq.mm to 2.5 Sq.mm
Type : J/K/T/N/E
Conductor : Single Stranded / Multi stranded
Color Code : As per ANSI / IEC / DIN
Insulation : PVC / Silicone Rubber / PTFE / Kapton / SS Braided / Fiber Glass / Asbestos
/ SS Braided
Protection : Armored / Unarmored Cable
Armored : SS Sheathed / Aluminum Sheathed / Mylar tape

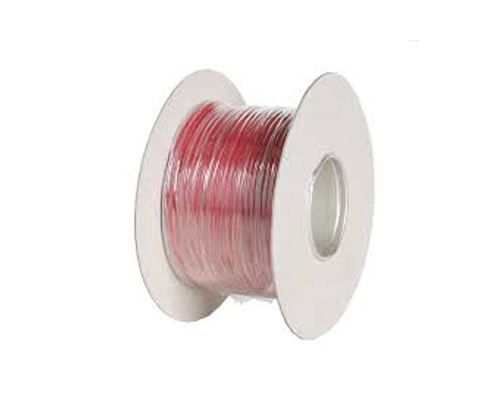

Compensating / Extension Thermocouple Cable
Size : 0.25 Sq.mm to 2.5 Sq.mm
Type : J/K/T/N/E/R/S & B
Conductor : Single Stranded / Multi stranded
Color Code : As per ANSI / IEC / DIN
Insulation : PVC / Silicone Rubber / PTFE / Kapton / SS Braided / Fiber Glass / Asbestos
/ SS Braided
Protection : Armored / Unarmored Cable
Armored : SS Sheathed / Aluminum Sheathed / Mylar tape

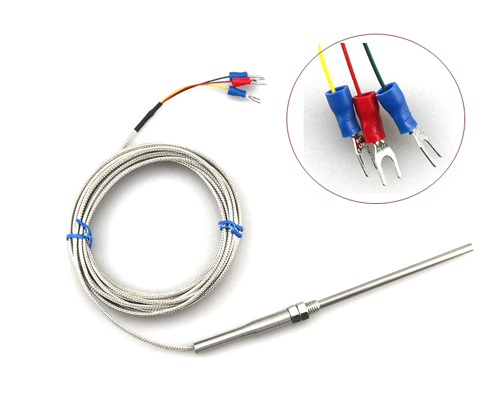

RTD CABLE
Size : 0.25 Sq.mm to 2.5 Sq.mm
Core : 2 / 3 / 4/ & 6 core – others please specify
Conductor : Single Stranded / Multi stranded – Silver plated or Tinned copper wire
Color Code : As per ANSI / IEC / DIN
Insulation : PVC / Silicone Rubber / PTFE / Kapton / SS Braided / Fiber Glass / Asbestos
/ SS Braided
Protection : Armored / Unarmored Cable
Armored : SS Sheathed / Aluminum Sheathed / Mylar tape
